Product Installation Manual
Models：TP-EVVA-W32ASS
AC quick charging stations Installation and operating instructions.
Please read all the instructions before installation and save them for future reference.
Dear customer!
Thank you for purchasing the TellusPower product. Before using or operating this product, please read this manual carefully and keep it safely. The Company is not liable for any accidents caused by a breach of safety precautions or instructions in this manual. This product is live and should only be opened by instructed service personnel or a qualified electrician for service, maintenance or repair and fault handling to avoid electric shock.
Attention
Our company will not assume any responsibility for power damage, personal injury, property loss or damage of charger caused by installation not in accordance with the instructions of this manual.
NOTE TellusPower reserves the right to make change as necessary to comply with change in the industry and due to errors and omissions to ensure a safe and reliable installation. Please call our customer support line if there are any questions related to installation or operation of this equipment. | CONFIDENTIALITY The material contained in this document represent proprietary and confidential information pertaining to services and methods of TellusPower. By reading this document you agree that the information shall not be disclosed outside of and shall not be duplicated, used, or disclosed for any purpose other than what it was created for. |
01. Critical Safety
READ THE ENTIRE MANUAL BEFORE DESIGNING OR INSTALLING EQUIPMENT
WARNING
This unit is a high-powered electrical device and can be hazardous if improperly installed, serviced, or operated. Failure to follow procedures in this manual could result in extreme hazard to personnel and/or damage to the equipment and related infrastructure. In addition, the installation, service, and maintenance need to comply with local codes and the Authority Having Jurisdiction (AHJ).
IMPORTANT SAFETY INSTRUCTIONS
The symbols used are international icons used to depict various levels of caution when installation, servicing or maintaining the equipment. Same symbols will also appear on the equipment for identifying caution levels required when access certain areas of the charger.
Image | Caution | Risk of electric shock. Do not remove cover or attempt to open the enclosure. No user serviceable parts inside. Refer servicing to qualified service personnel. |
Image | Warning | Ground machine takes a suitable ground before operation. |
Image | Warning | This device is intended only for charging vehicles not requiring ventilation during charging. |
SERVICE WARNING
There are no serviceable items inside the equipment. There is high voltage inside the equipment which could cause severe injury or death. Do not attempt to repair the charge station yourself. This can only be performed by factory qualified personnel.
CHARGING CABLE DAMAGE
Do not operate the charger if the charging cable is damaged or if here are exposed wires in the charging cord assembly. Shut off power at the electrical disconnect or at the breaker. Then immediately contact Tellus Power service. If there are any questions, please contact customer service.
SAFETY INSTRUCTIONS
Read the entire installation instructions before designing the installation and prior to installation.This equipment should be installed by a journeyman level electrician. Local building codes need to be complied with. In most jurisdictions the installation of this equipment requires plan check, building and electrical permits. Verify with the local Authority Having Jurisdiction prior to starting construction.
The charging station relies on the grounding system for safety. All grounding instructions should be strictly adhered to as prescribed in this manual and any applicable electrical safety requirements, all local electrical safety codes, and IEC.
HIGH VOLTAGE EQUIPMENT
This charging system should only be installed by a qualified electrician trained to work with high voltage, high current systems.
Additional Cautionary Notes
WARNING
Do not have power on while any of the maintenance doors are open unless proper personnel protection equipment is worn.
Only trained personnel should be working in this equipment while the doors are open, and the unit is powered on.
WARNING
There are high voltage and high-capacity energy storage components on this system. There are components and circuits that remain charged for some time (1 to 2 minutes) with high voltage power, even after main power is disconnected. Always test with a voltmeter before any maintenance or service is performed.
02. Product Features
Fast
| Reliable
|
Simple
| Smart
|
Safety
| Easy-to-Use
|
Protection
|
03. Product Specifications
AC Input | |
Power | LN+PE |
| Input/output Ac Voltage | 176~264V AC |
Rated current | 32A AC*1 |
Rated Ac frequency | 50/60±1Hz |
Rated output power | 7kW Single phase |
EV gun type | Type 2 |
EV gun (PCS) | 1 |
EV charger cable | 5m others(Optional) |
Environment | |
Operating Temperature | -30℃~50℃ |
Degree of protection (IP Class) | IP55 |
Communication | |
Network connectivity | LAN (Optional) Wi-Fi (Optional 4G (Optional) BLE V5.0 (Optional) OCPP V1.6/ WSS (Yes if has Network connectivity) Local Load balance (Optional) |
User Interface | |
RFID reader | Active multi-standard |
Active multi-standard | - |
Power Meter | MID,CE, Accuracy class:+1.0(Optional) |
Safety | |
Protection | RCD Type B (with external RCBO Type A） Overvoltage and undervoltage protection Overcurrent protection Upstream protective conductor monitoring (Optional) Output PE continuous continuity checking Surge protection：4kV Output short circuit protection（External RCBO） Contactor welding monitoring Temperature monitoring 2 pcs (Optional) |
Regulation | |
Standard | IEC/EN 61851-1:2017;IEC 61851-21-2:2018 IEC 62196-1:2014;IEC 62196-2:2016 IEC 62955-2018;IEC 61439-7-2018 |
Mechanical | |
Dimension (W X D X H) | 16.57"×11.14"×7.01"（421mm x 283mm x 178mm) |
Weight | 14.33 lbs.（6.5kg） |

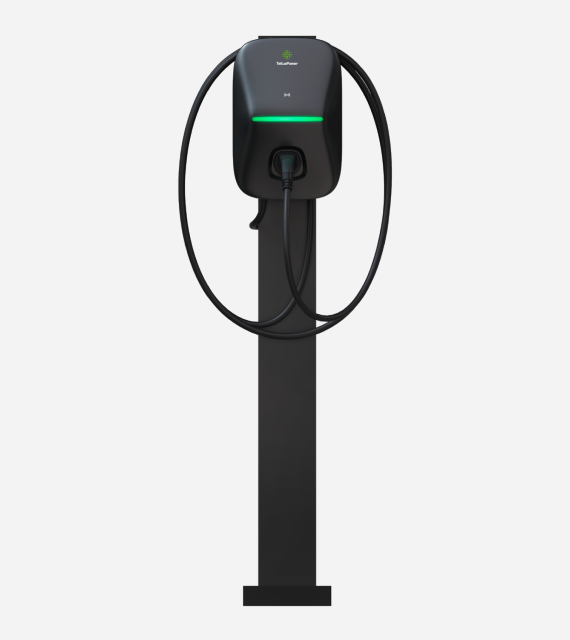

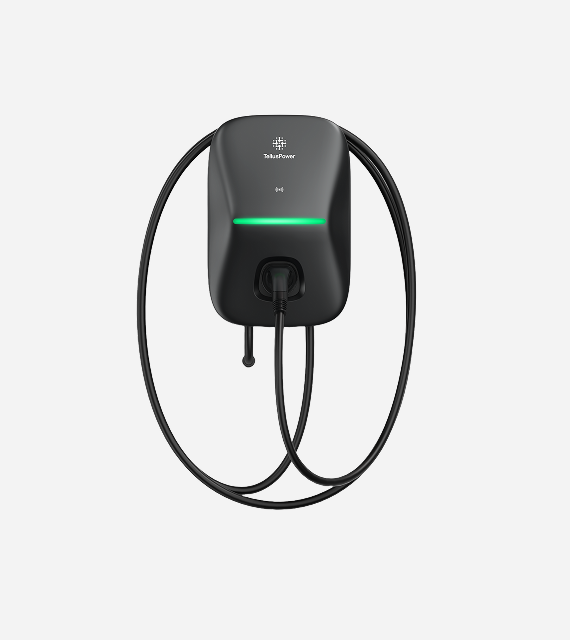

Mounting | Wall Mounted / Stand Pedestal(Optional) |
04. Installation Precautions
Transport
NOTE
During transport, make sure to keep the charger in the direction indicated on the case, and avoid tilting or turning it upside down.
Installation Conditions
- Maintain a minimum distance of 1 meter from other equipment.
- The device must be mounted on a concrete pad.
- Installation Environment -30℃~50℃.
- Air relative humidity 5% - 95%.
Unboxing
- Before unpacking, make sure that the charger is in the direction indicated on the box.
- Confirm that all components are included in the package.
- When unpacking, please handle with care.

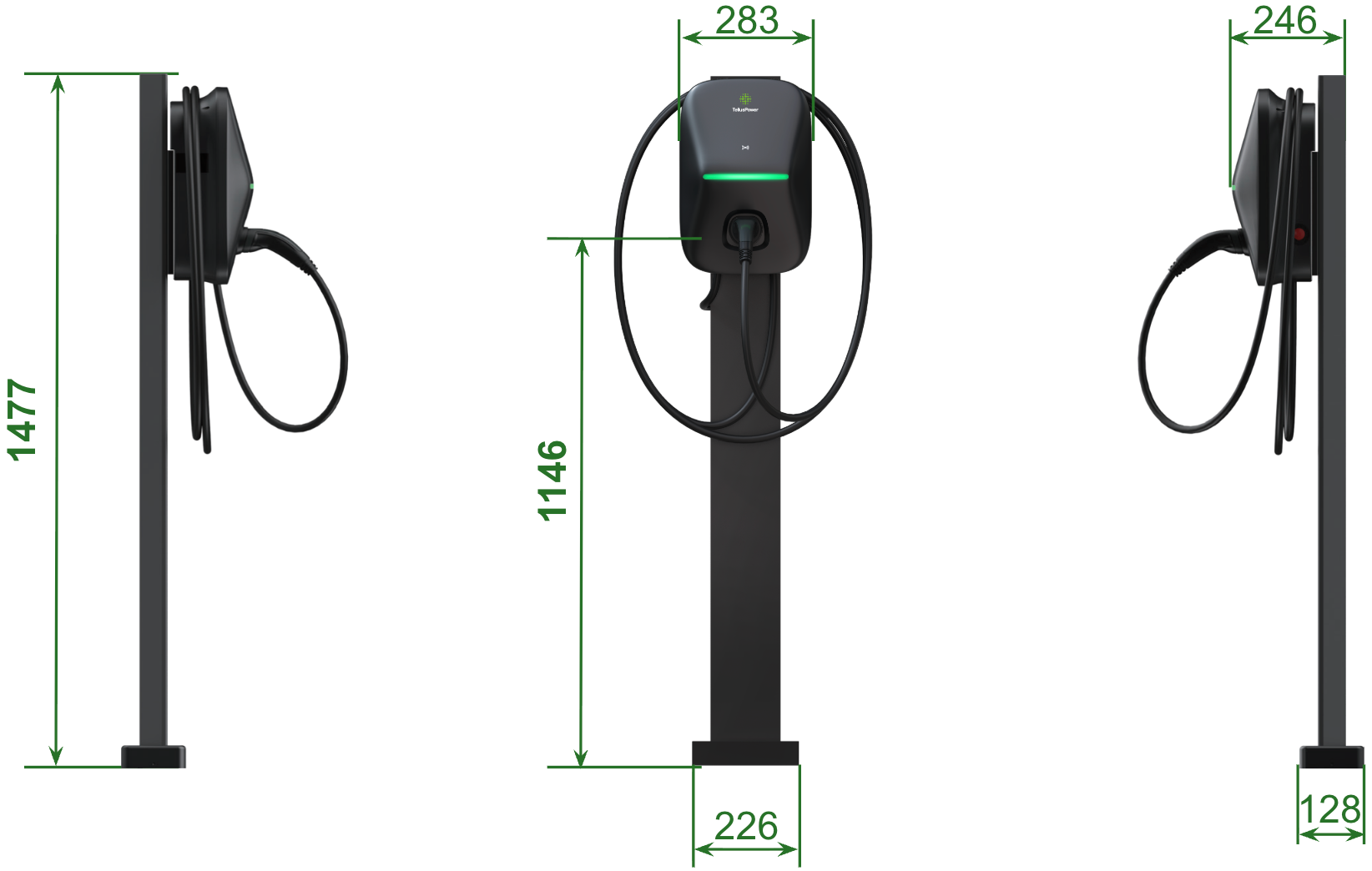

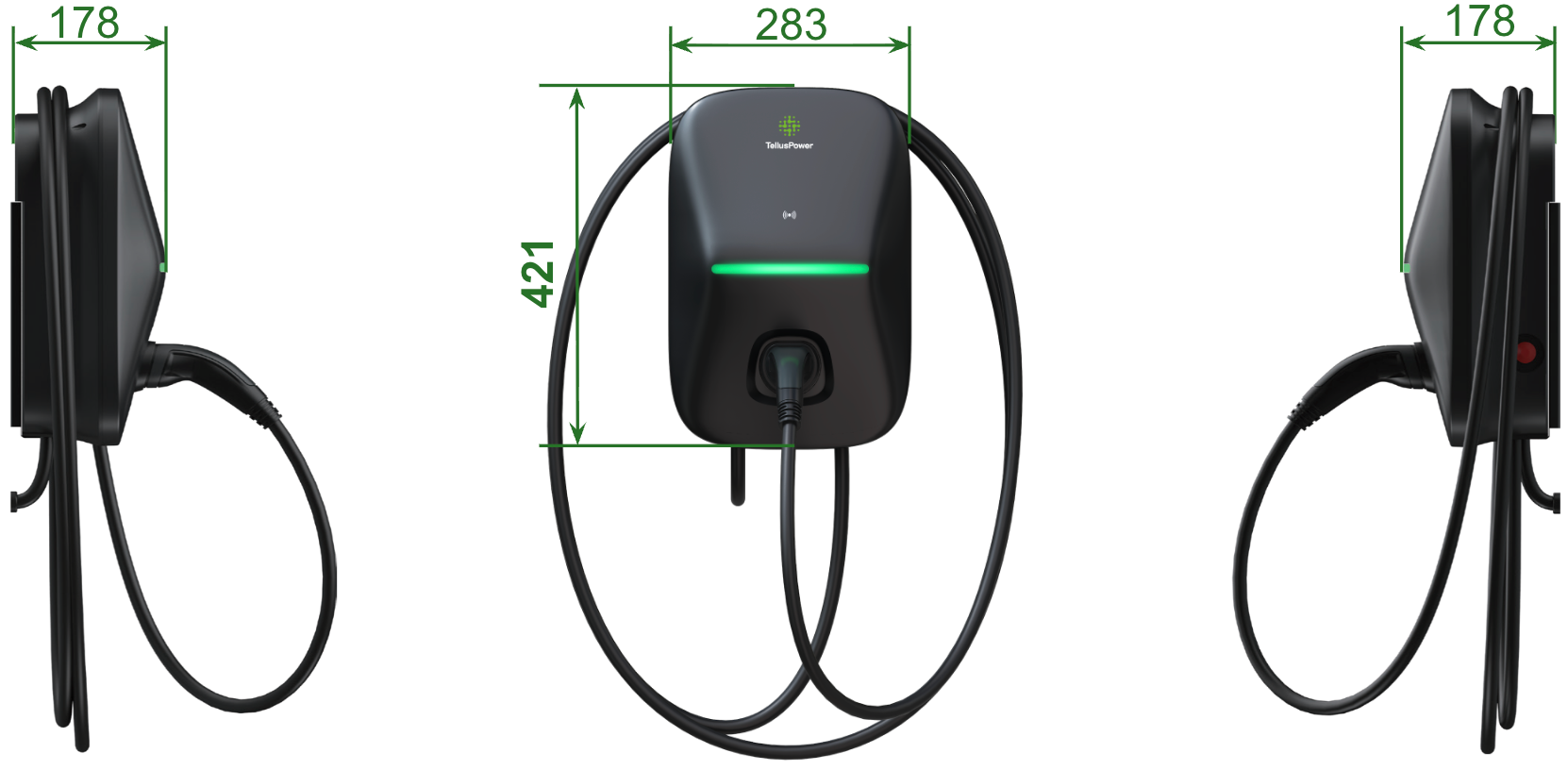

05. Outline of Drawing
06. Box Contents
Open the box, and remove the charger and accessories. Check the quantity of packaging accessories.
Packaging List - Wall Mounted | Packaging List - Pedestal |
1 X Charger 4 X Φ6*60 plastic anchor ST3.9×60 304 stainless steel self-tapping screw 1 X Bracket A 1 X Bracket B 3 X Φ10*60 plastic anchor ST6×60 304 stainless steel self-tapping screw 1 X Phillips Pan Head Machine Screw M4×8 2 X Charging Card 1 X Instruction Card 1 X Certificate | 1 X Charger 1 X Pedestal 1 X Base Cover 4 X Bolt : M12*100 3 X Screws : M6*12 1 X Screws : M4*8 2 X Charging Card 1 X Instruction Card 1 X Certificate |
07. Installation Tools
The following tools will be needed:
Short driver handle (for standard bits)
Right-angle driver ratchet (for standard bits)
Set of SAE wrenches
Hole cutting drill bits to match conduit size
Spirit Level
The following hardware may also be needed:
Wall anchors and fasteners
Washers
Pad mount concrete anchors
Anchor security hardware
08. Wall Installation
The following tools will be needed:
Short driver handle (for standard bits)
Right-angle driver ratchet (for standard bits)
Set of SAE wrenches
Hole cutting drill bits to match conduit size
Spirit Level
